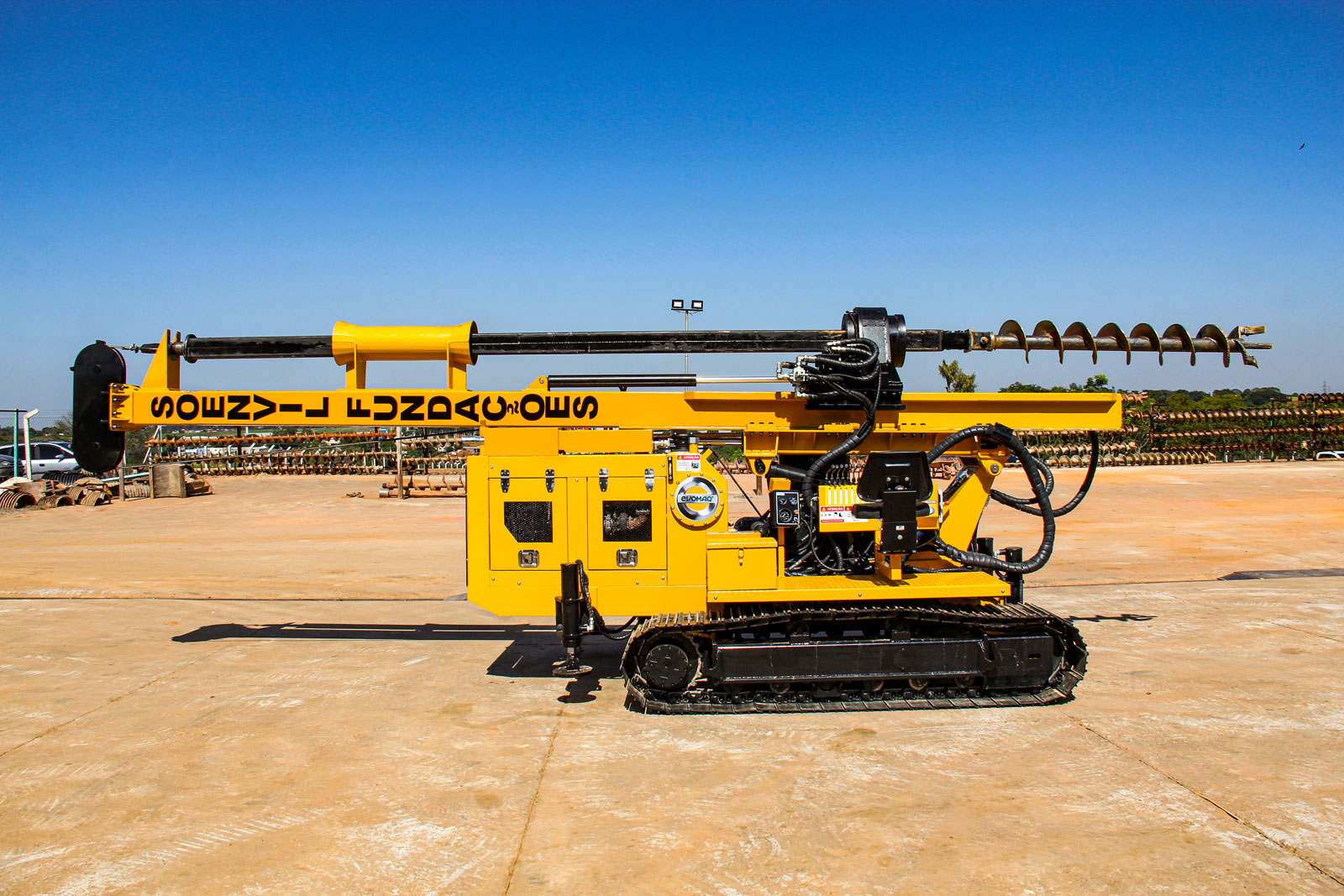

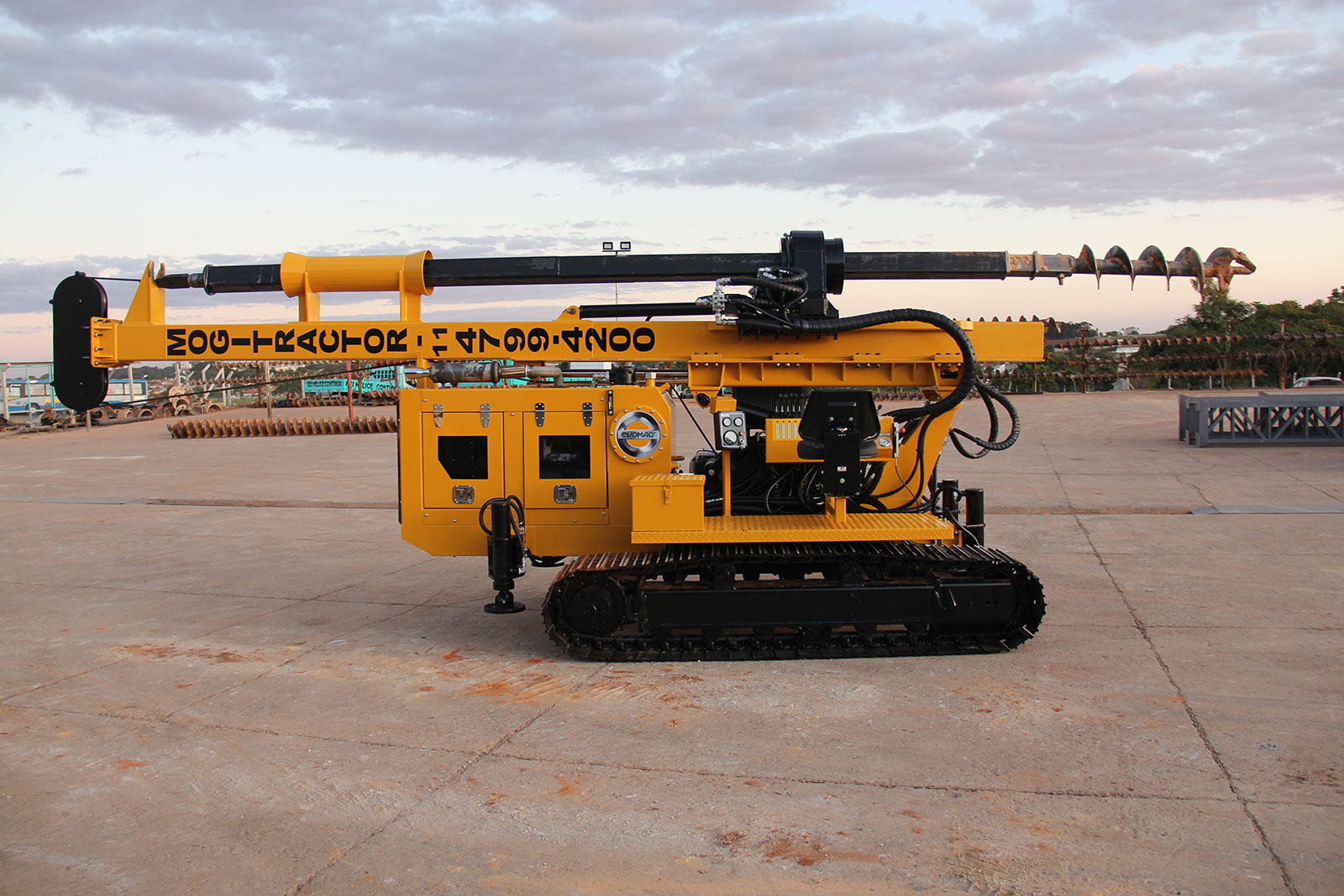

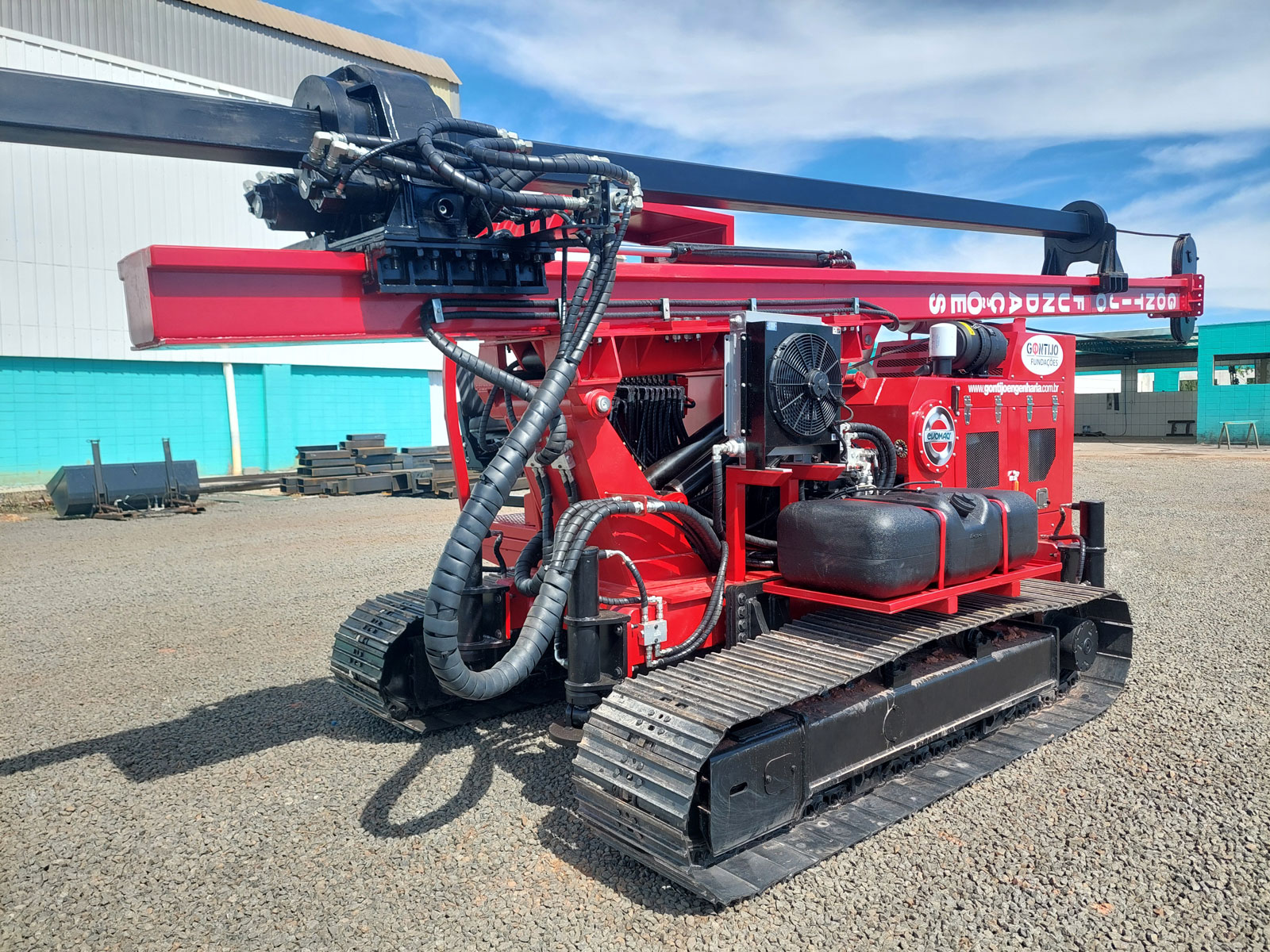

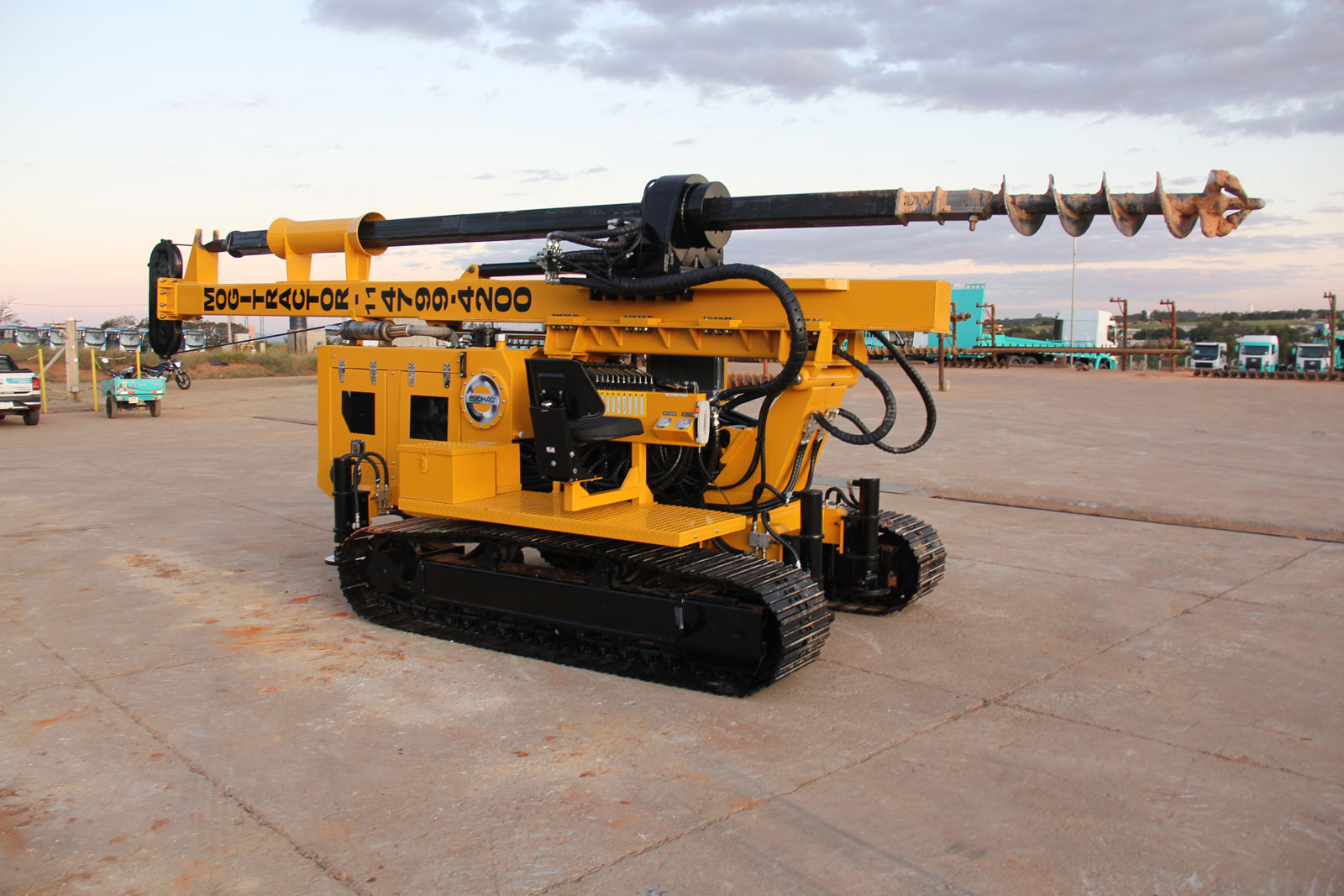

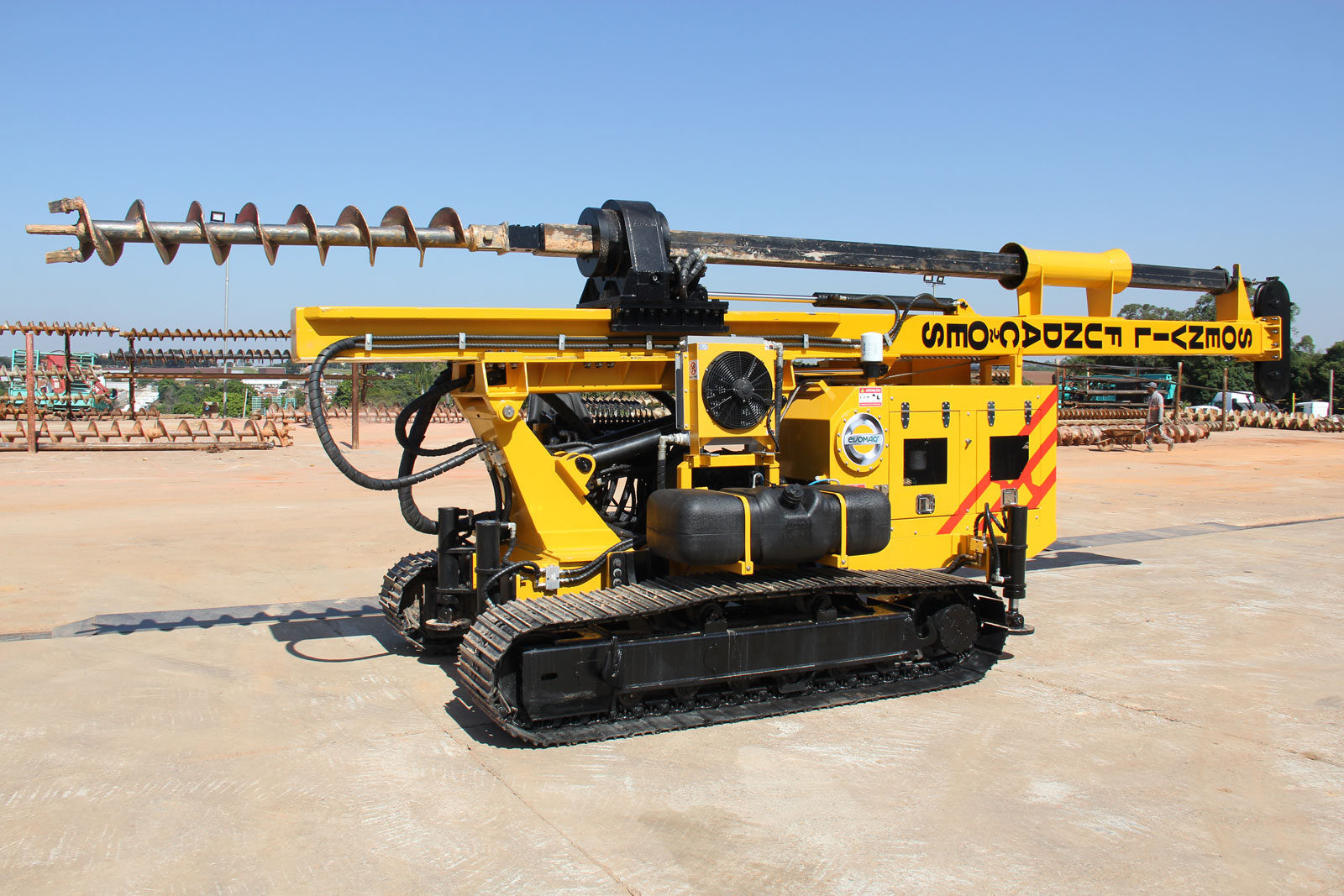

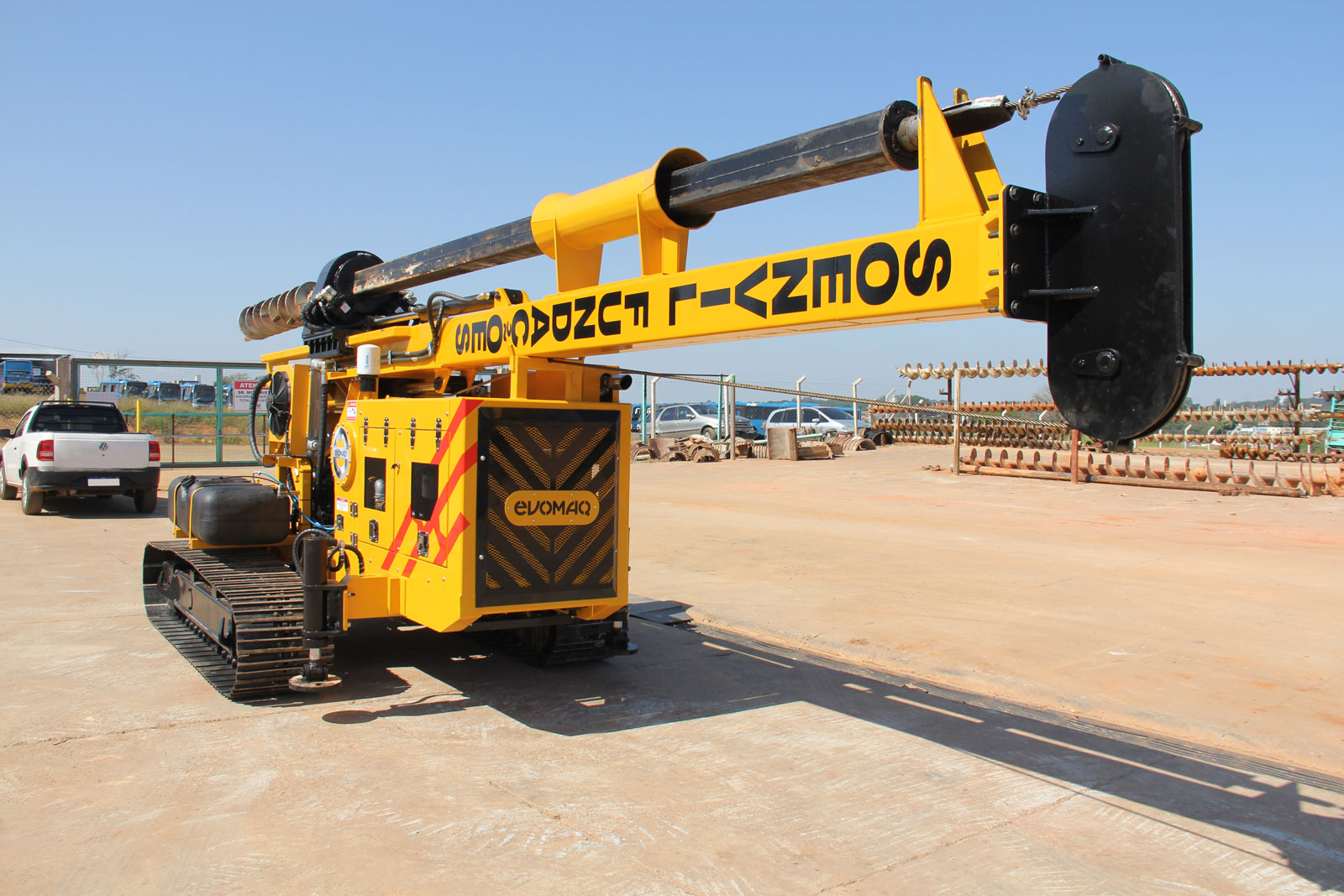

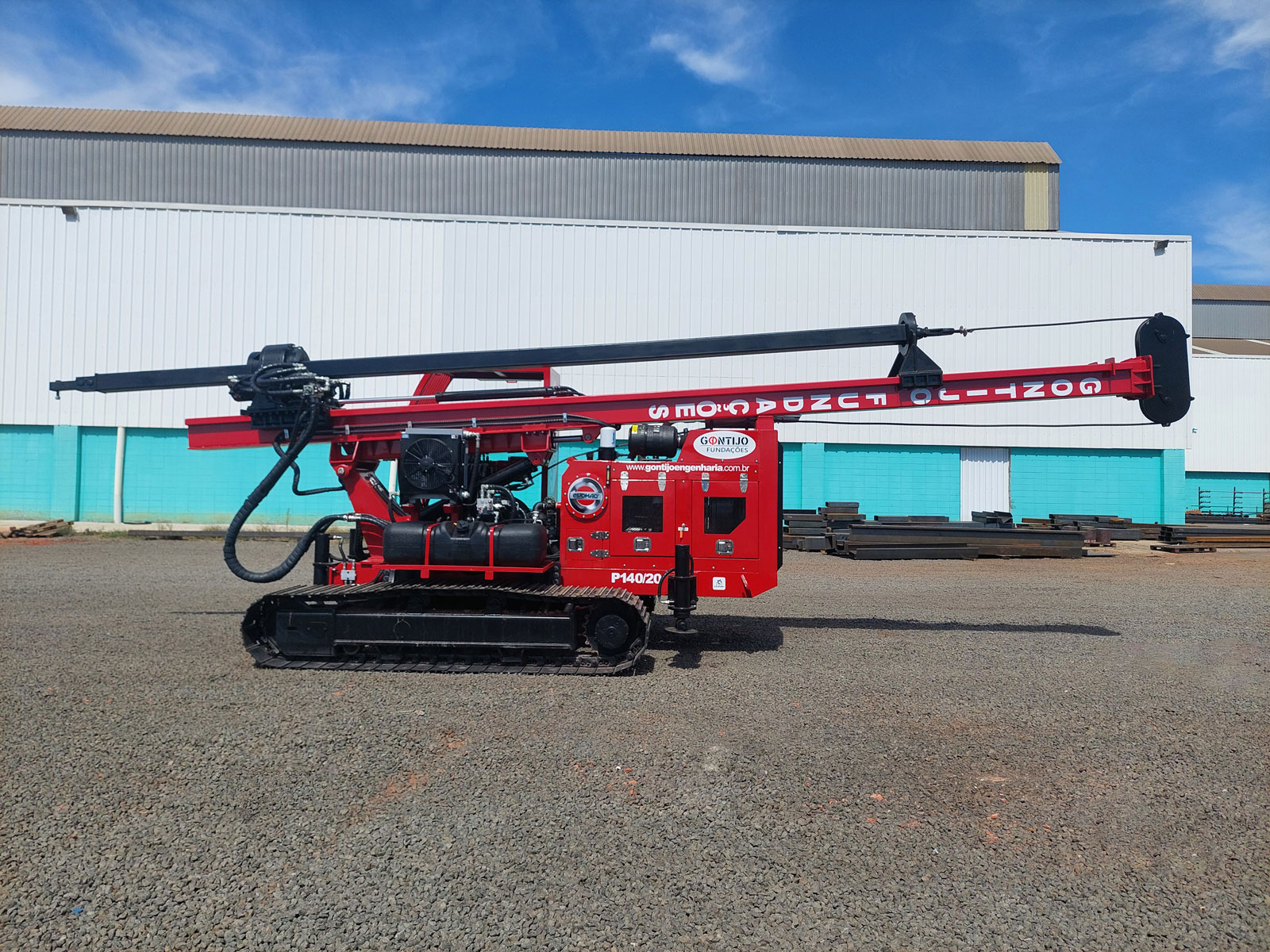

The EVOMAQ® Crawler-Mounted Bored Pile Drilling Rig combines agility and productivity with user-friendly technological features. Its compact size makes it easier to transport and significantly reduces overall mobilization costs. This equipment also offers a low maintenance cost, ensuring excellent performance and reliability.
Delivers high torque for both drilling and extraction, ensuring performance and reliability at the job site.
COMPARE THE EVOMAQ® CRAWLER-MOUNTED BORED PILE DRILLING RIG MODELS
| Specifications | P100/15 Rig | P140/20 Rig |
|---|---|---|
| Minimum Drilling Diameter | 250 mm | 250 mm |
| Maximum Drilling Diameter | 1.000 mm | 1.400 mm |
| Maximum Drilling Depth | 15 m | 20 m |
| Maximum Torque | 1.500 kgf.m | 3.000 kgf.m |
| Maximum Head Rotation | 40 RPM | 40 RPM |
| Extraction Force | 6.000 kgf.m | 6.000 kgf.m |
| Engine and Power | 83 hp | 152 hp |
| Total Equipment Weight | 9.320 kg | 9.500 kg |
| Total Track Length | 2.900 mm | 2.900 mm |
| Track Shoe Width | 500 mm | 500 mm |
| Length (Working) | 5.290 mm | 5.290 mm |
| Length (Transport) | 8.425 mm | 8.425 mm |
| Total Equipment Width | 2.347 mm | 2.347 mm |
| Height (Working) | 9.778 mm | 9.778 mm |
| Height (Transport) | 2.944 mm | 2.944 mm |
| Maximum Travel Speed | 2 km/h | 2 km/h |
