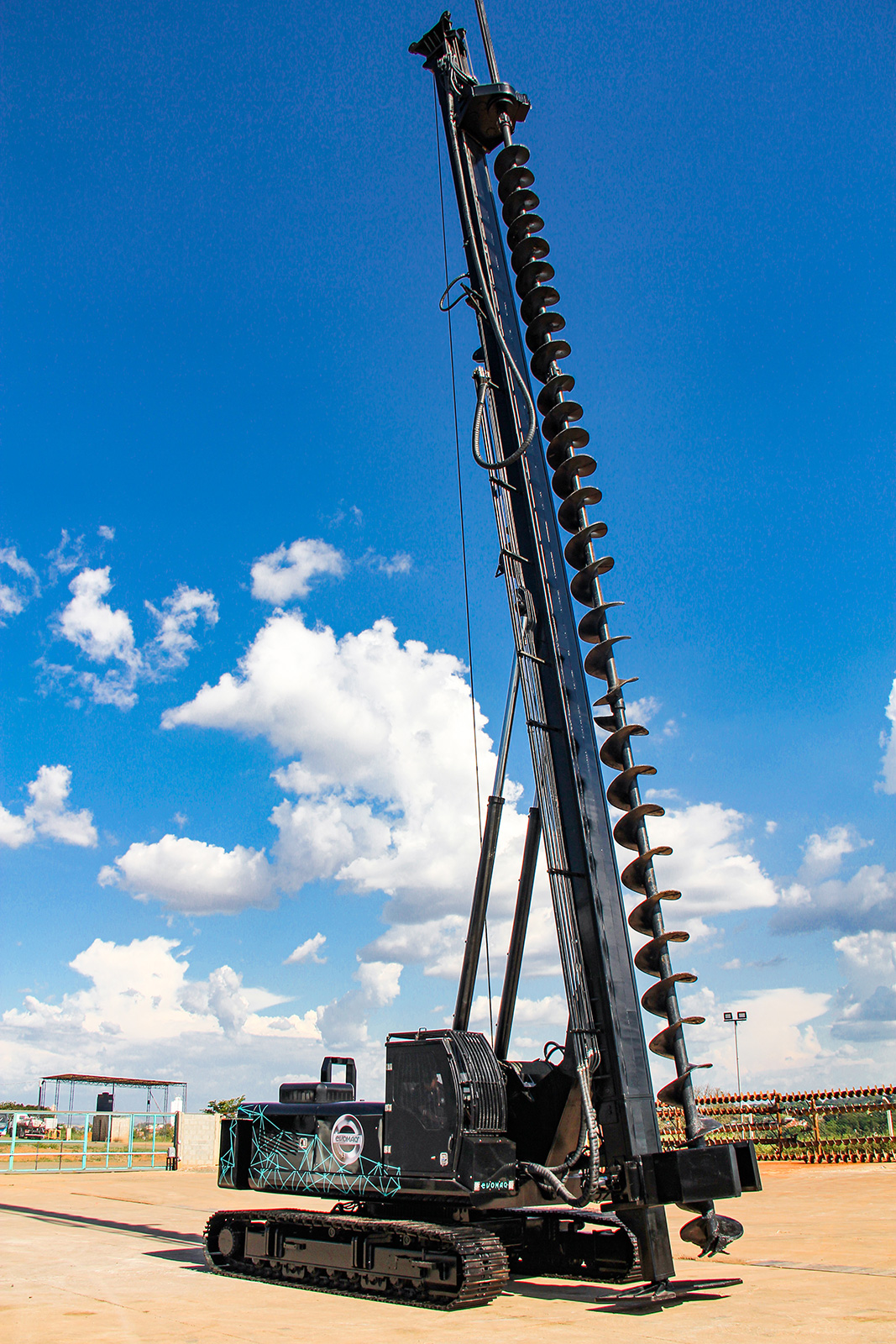

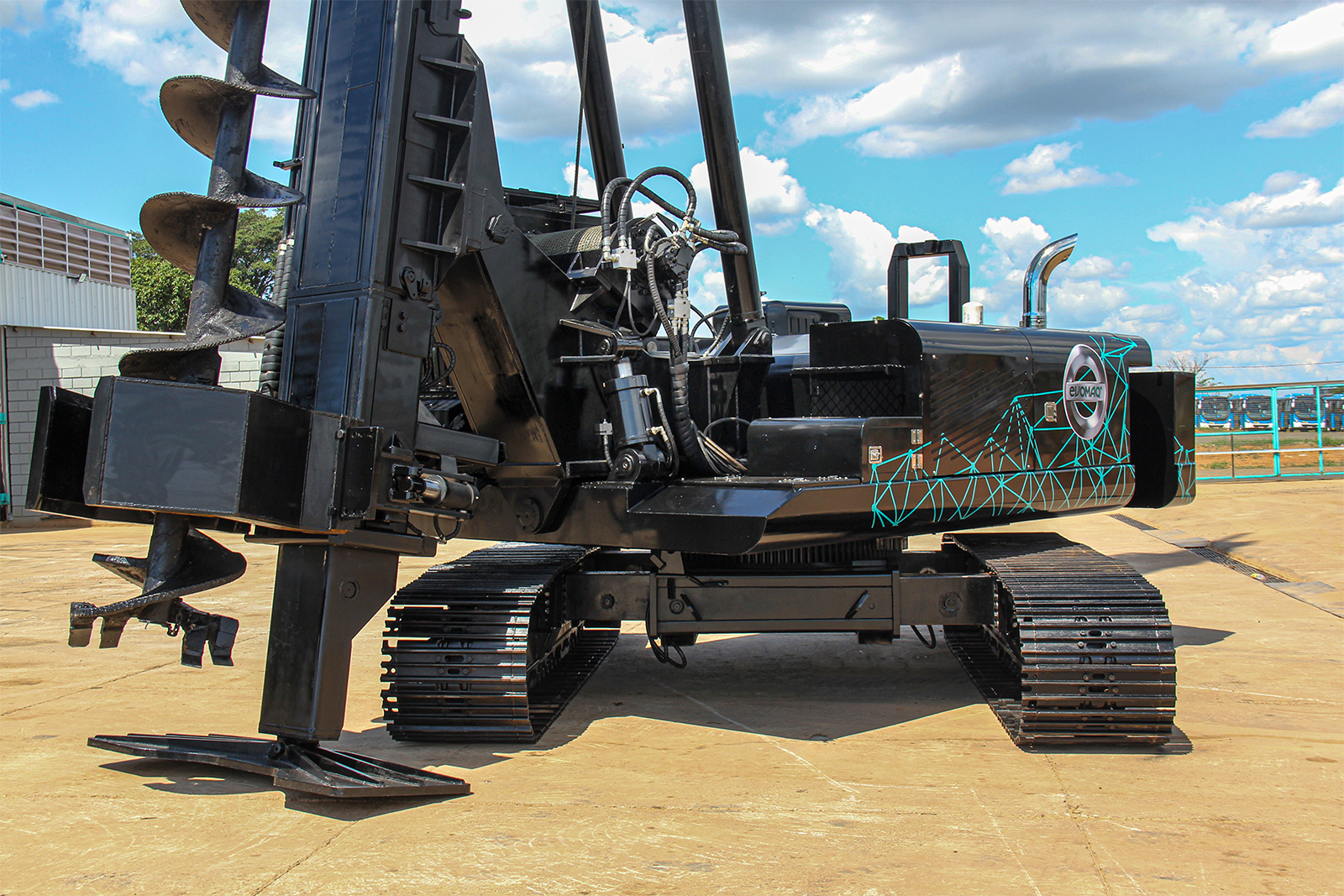

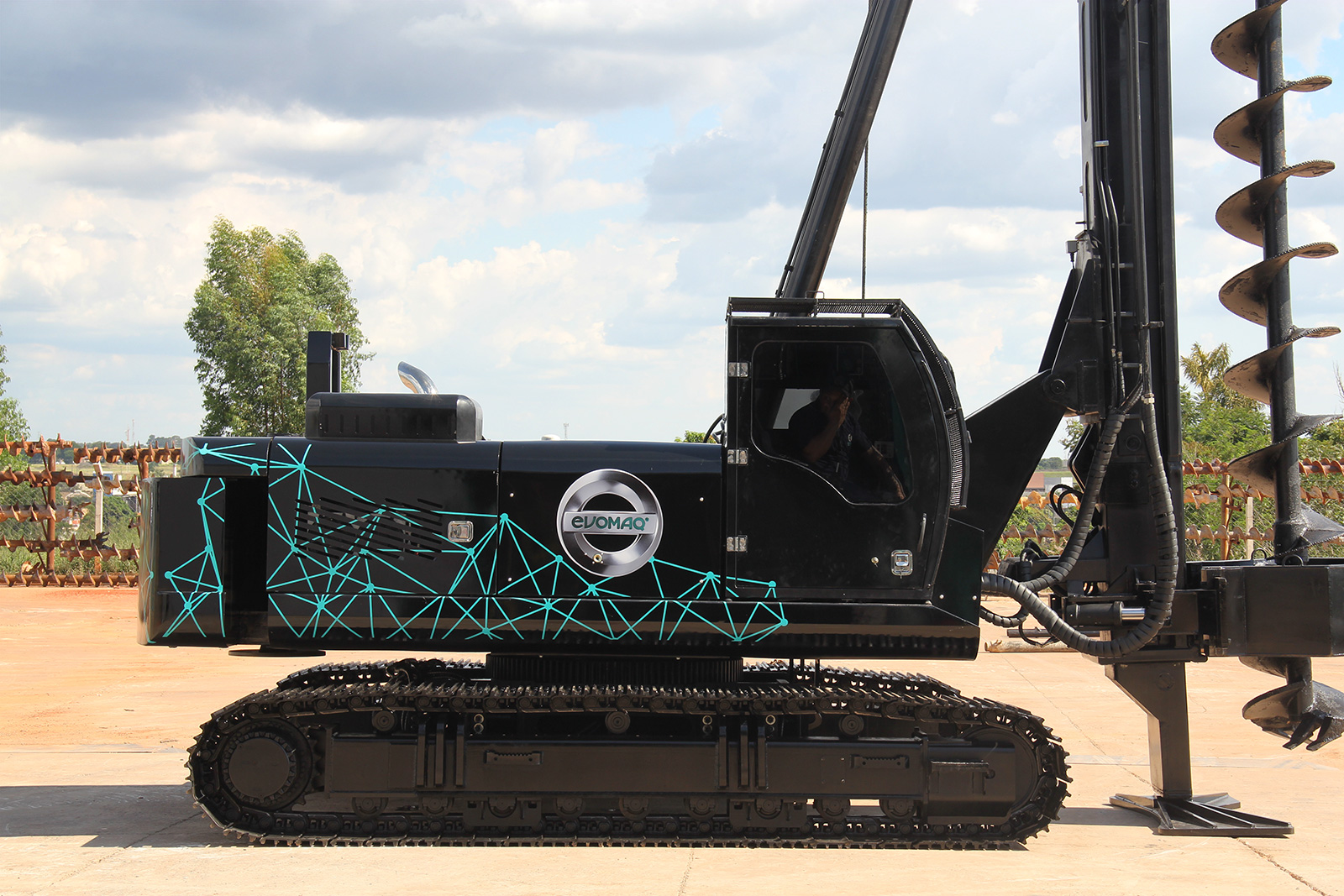

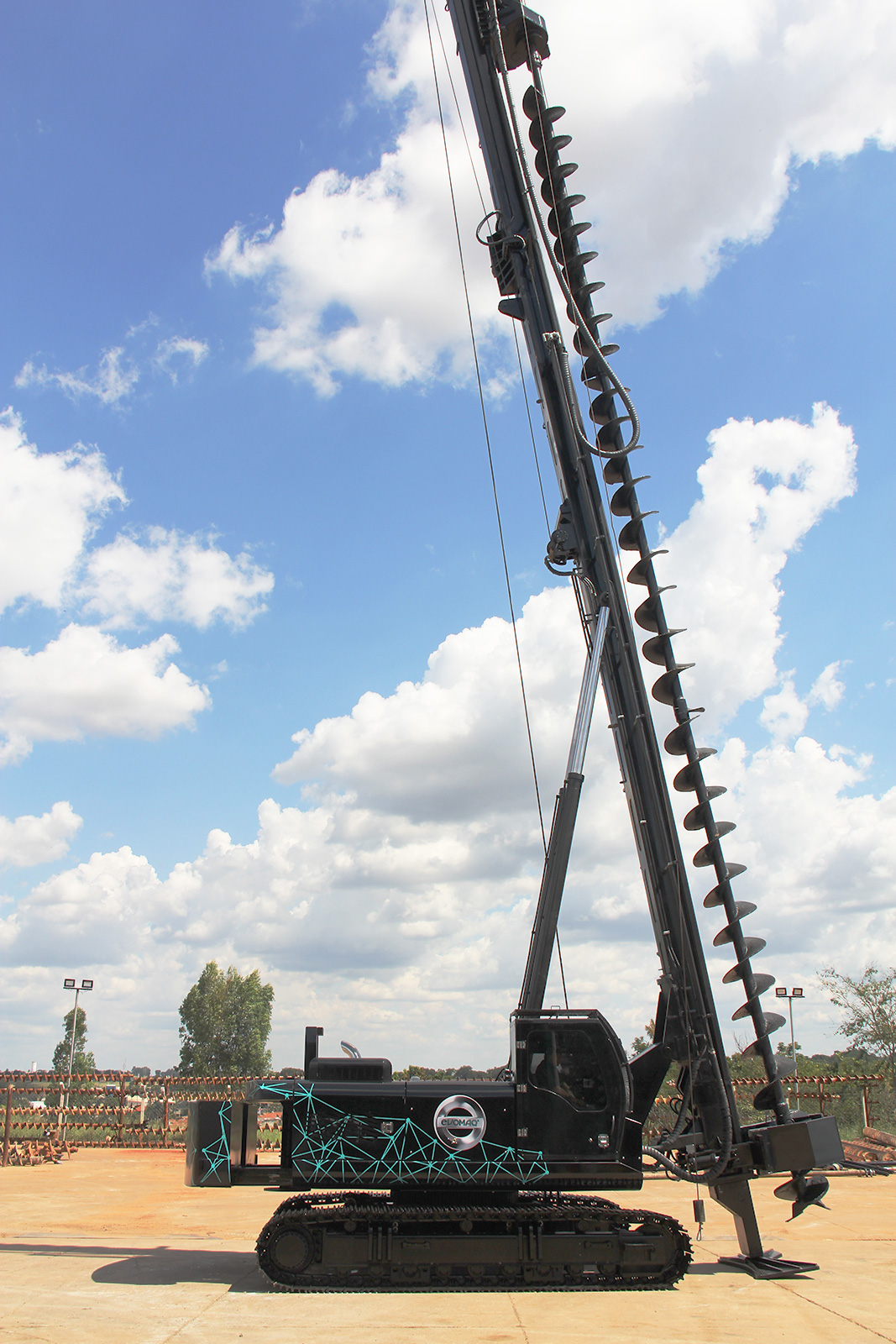

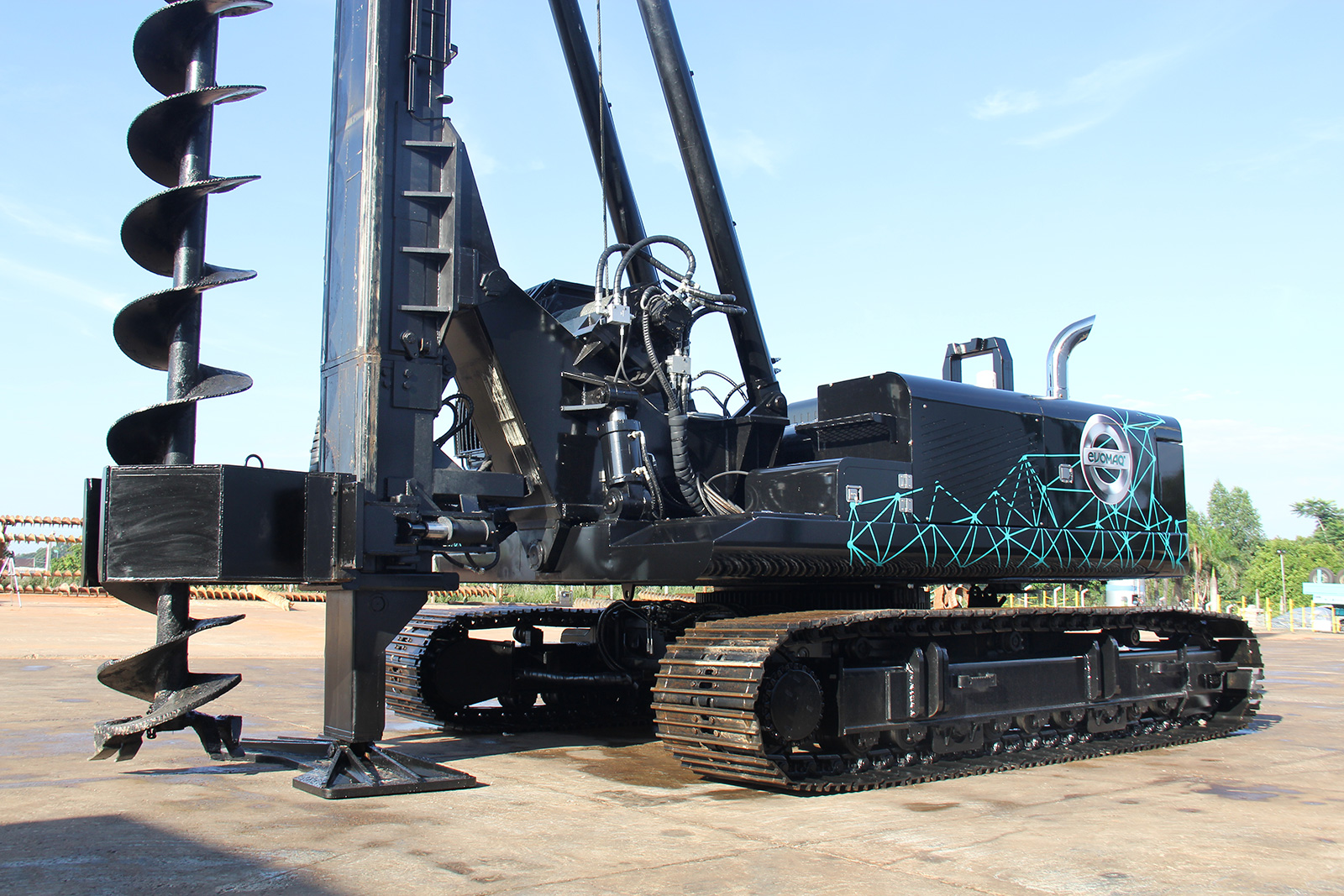

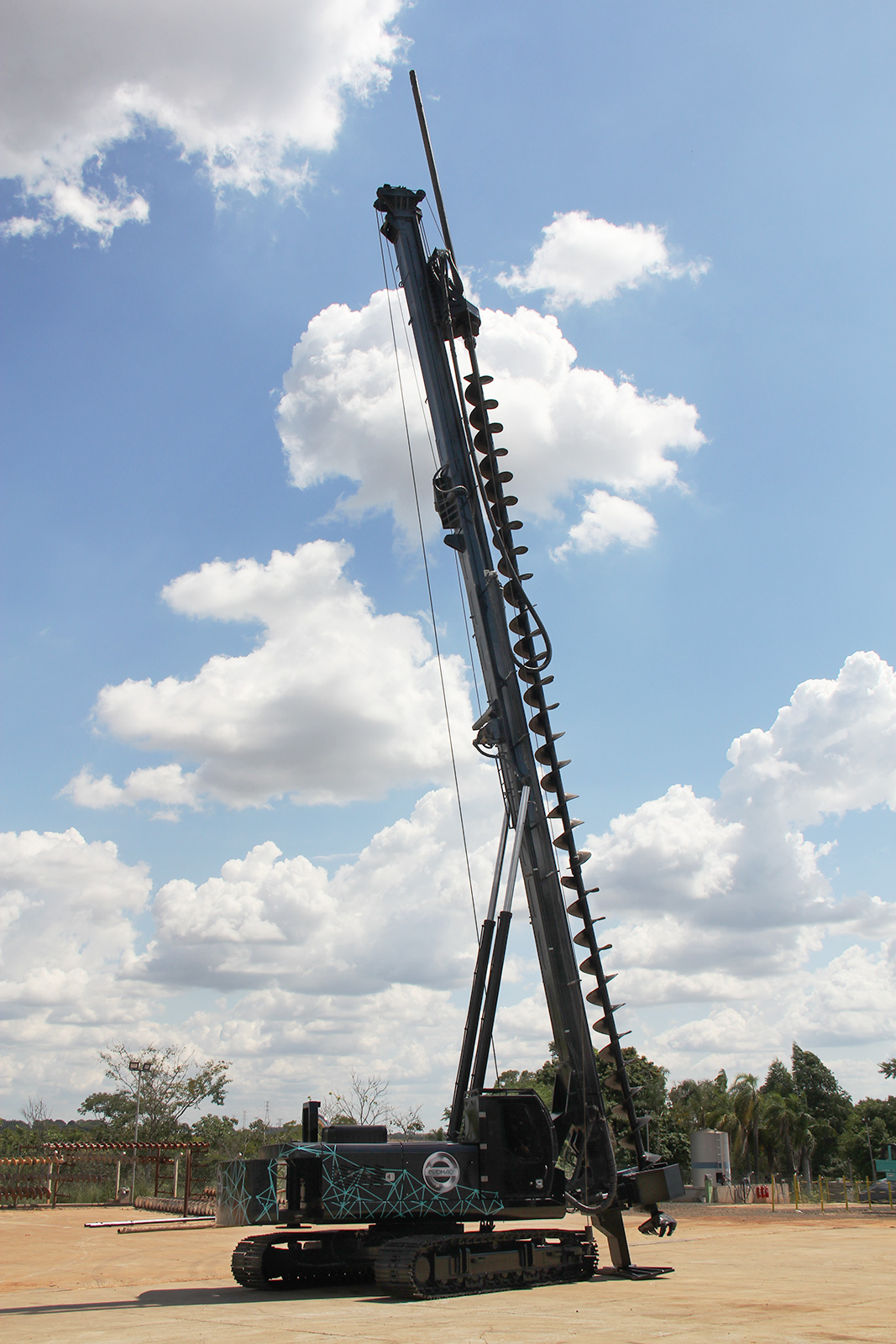

Continuous Flight Auger Drill (CFA Drill) MAX POWER P100026

The EVOMAQ ® MAX POWER 1000/26 drill rig is equipped with a TOP DRIVE drilling head that has a capacity of 1,000 mm in diameter and reaches 26 meters in depth. With its own chassis, it delivers a maximum torque of 16,000 kgf.m, 360° ROTATING of the equipment to maximize use, productivity and safety.

Cutting-edge equipment designed for large-scale construction projects, seamlessly integrating advanced technology, a wide range of functions, and exceptional performance.

SPECIAL FEATURES AND RESOURCES

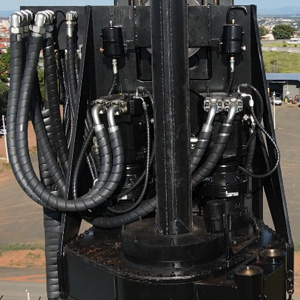

High Torque of 16,000 KGF.M

In response to the demands of robust equipment like this, we've engineered a dedicated hydraulic system, delivering an astounding 16,000 kgf.m of pure force and exceptional performance to our machinery.

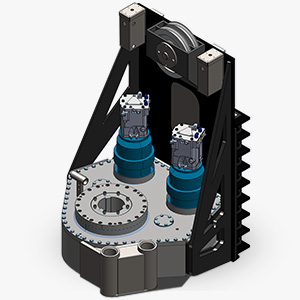

Drilling Head with High Performance

While our drilling head retains its compact form, this equipment version incorporates significant enhancements. In this model, larger hydraulic motors are expertly paired with two robust reducers. When combined with ample diesel power and a meticulously designed hydraulic system, this model achieves an impressive torque of 16,000 kgf.m.

360º Rotation

EVOMAQ has used techniques and features to provide a 360° ROTATION around the equipment to maximize use, productivity and safety.

Exclusive Hydraulic Vice

To keep the auger alignment during the drilling, the drill of EVOMAQ® has an exclusive hydraulic vise system for all diameters, facilitating and ensuring enhanced safety for individuals involved in the operation.

Monitoring Computer

The EVOMAQ® Continuous Flight Auger Drill (CFA) has a high-tech monitoring computer that generates accurate, real-time data on drilling and concreting, through detailed graphics, providing reliability for the customer.

Hydraulic Pump with Closed Circuit

The EVOMAQ P1000/26 has a LINDE hydraulic piston pump with a closed circuit that is used exclusively to supply the drilling command. Contact our team and know more about this feature.

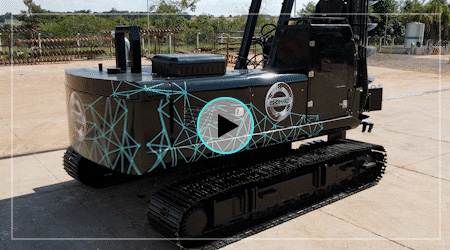

Hydraulic Counterweight

Consistently paying attention to our customers' feedback, we developed a HYDRAULIC COUNTERWEIGHT system to maintain stabilization and provide even more safety for each operation.

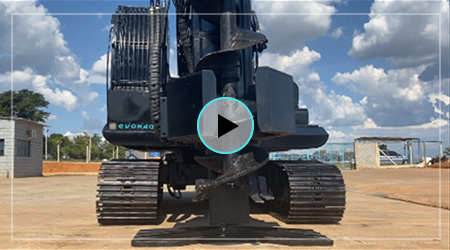

Extendable Tracks

To achieve the 26-meter drilling capacity of our equipment, we designed larger, more resistant and, above all, more stable tracks, providing greater safety in operations within construction sites. We also installed a hydraulic device that widens the tracks by 800 mm, offering even more stability during maneuvers and carrying out work.

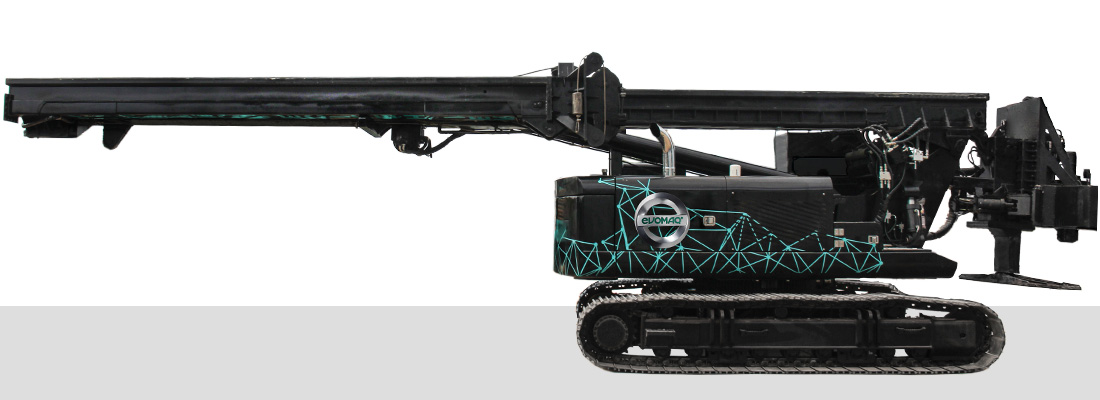

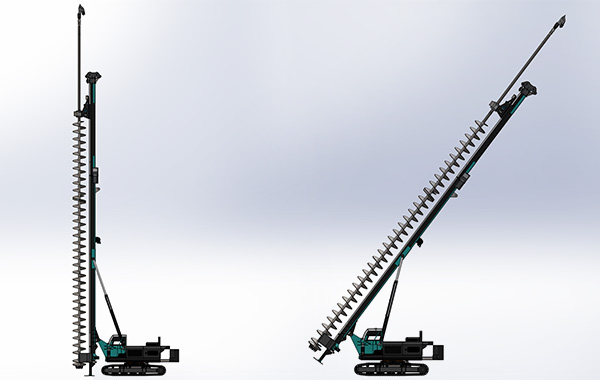

Hydraulic Tower Adjustments (Tower side slope and Tower Elevation)

In addition to greater agility, the hydraulic adjustments of the tower are essential for the safe displacement of the EVOMAQ drill rig on construction site.

When in movement, the tower can be tilted sideways and backwards, maintaining the center of gravity and providing even more safety for the operation.

TECHNICAL SPECIFICATIONS

* In this equipment model, the customer can choose the brand of chassis they prefer, such as Caterpillar, Volvo, John Deere and XCMG. For other chassis manufacturers, project development will be required.

	P70/20 Drill Rig	E80/25 Drill Rig	P1000/26 Drill Rig
Weight	21.000 kg	49.000 kg	52.000 kg
Minimum drilling diameter	250 mm	300 mm	300 mm
Maximum drilling diameter	700 mm	800 mm	1.000 mm
Maximum drilling depth	20 m	25 m	26 m
Extraction force	32.000 kgf	64.000 kgf	64.000 kgf
Maximum torque	10.000 kgf	13.000 kgf	16.000 kgf
First gear rotation	16 RPM	*	14 RPM
Second gear rotation	24 RPM	*	18 RPM
Third gear rotation	30 RPM	*	28 RPM
Fourth gear rotation	38 RPM	*	44 RPM
Engine	MWM 6.12 TCA 330 hp	*	MWM 6.10 TCA 360 hp
Total track length	4.490 mm	*	4.450 mm
Track width	600 mm	*	600 mm
Transfer speed	2 km/h	*	2 km/h
Slope	5,03°	*	3,5°
Height	17.238 mm	*	23.210 mm
Length	5.589 mm	*	7.660 mm
